1500M LASER RANGEFINDER MODULE
Product Description
DLRF-C1.5: Compact 905nm Laser Ranging Module rau 1500m + Kev Ntsuas
DLRF-C1.5 semiconductor laser rangefinder yog ib yam khoom tshiab uas ua ke nrog cov thev naus laus zis siab heev thiab tib neeg tsim ua tib zoo tsim los ntawm Lumispot Siv lub cim 905nm laser diode ua lub teeb ci tseem ceeb, tus qauv no tsis tsuas yog ua kom tib neeg lub qhov muag muaj kev nyab xeeb, tab sis kuj teeb tsa lub cim tshiab hauv kev lag luam laser xws li nws lub zog hloov pauv thiab ruaj khov cov yam ntxwv. Nruab nrog cov chips ua tau zoo thiab qib siab algorithms ntawm nws tus kheej tsim los ntawm Lumispot, DLRF-C1.5 ua tiav kev ua tau zoo nrog lub neej ntev thiab kev siv hluav taws xob tsawg, zoo kawg nkaus ua tau raws li kev lag luam xav tau rau cov khoom siv high-precision thiab portable.
Daim ntawv thov tseem ceeb
Siv nyob rau hauv UAV, pom, sab nraum zoov khoom siv tes ua thiab lwm yam kev siv (aviation, tub ceev xwm, railway, hluav taws xob, dej conservancy kev sib txuas lus, ib puag ncig, geology, kev tsim kho, chaw tua hluav taws, blasting, ua liaj ua teb, hav zoov, sab nraum zoov kev ua si, thiab lwm yam)
Nta
High precision xws li cov ntaub ntawv them nyiaj algorithm: optimization algorithm, zoo calibration
Optimized ranging method: ntsuas qhov tseeb, txhim kho qhov tseeb
Kev siv hluav taws xob tsawg tsim: txuag hluav taws xob txuag thiab ua kom zoo dua
Ua hauj lwm muaj peev xwm nyob rau hauv huab mob: zoo heev tshav kub dissipation, lav kev ua tau zoo
Miniaturized tsim, tsis muaj lub nra hnyav
* Yog kojxav tau cov ntaub ntawv qhia ntxaws ntxivhais txog Lumispot Tech's Erbium-doped iav lasers, koj tuaj yeem rub tawm peb cov ntaub ntawv los yog tiv tauj lawv ncaj qha rau cov ntsiab lus ntxiv. Cov lasers no muaj kev sib xyaw ua ke ntawm kev nyab xeeb, kev ua tau zoo, thiab ntau yam uas ua rau lawv muaj txiaj ntsig cov cuab yeej hauv ntau yam lag luam thiab kev siv.
Nco tseg:
Pom pom ≥10km, av noo ≤70%
Lub hom phiaj loj: lub hom phiaj loj loj dua qhov chaw loj
Khoom Paub meej
Specifications
| Yam khoom | Parameter |
| Lub wavelength | 905nm ± 5nm |
| Kev muaj peev xwm | 3 ~ 1200m (Lub tsev) |
| ≥200m (target@0.6mx0.6m) | |
| ± 0.1m (≤10m) | |
| Ranging raug | ± 0.5m (≤200m) |
| ± 1m (> 200m) | |
| Kev daws teeb meem | 0,1m ua |
| Ntau zaus | 1 ~ 4 Hz |
| Qhov tseeb piv | ≥98% |
| Beam kev sib txawv | ≤ 6 hli |
| Fais fab mov | DC 2.7V ~ 5.0V |
| Kev siv fais fab | ≤ 1.5W |
| Standby zog siv | ≤ 0.8W |
| Pw tsaug zog noj | ≤ 1mW |
| Hom kev sib txuas lus | UART (TTL_3.3V) |
| Baud tus nqi | 115 200/9600 ib |
| Dimension | 25mmx26mmx13mm |
| Qhov hnyav | 11g + 0.5g |
| Ua haujlwm kub | -40 ~ + 65 ℃ |
| Cia kub | -45 ~ + 70 ℃ |
| False tswb tus nqi | ≤ 1% |
| Kev cuam tshuam | 1000g 1ms |
| Kev vibration | 5 ~ 50 ~ 5Hz, 1 octave / min, 2.5g |
| Lub sijhawm pib | ≤200ms |
| Download tau |  Cov ntaub ntawv |
LSP-LRS-1000 & 1200 Duab

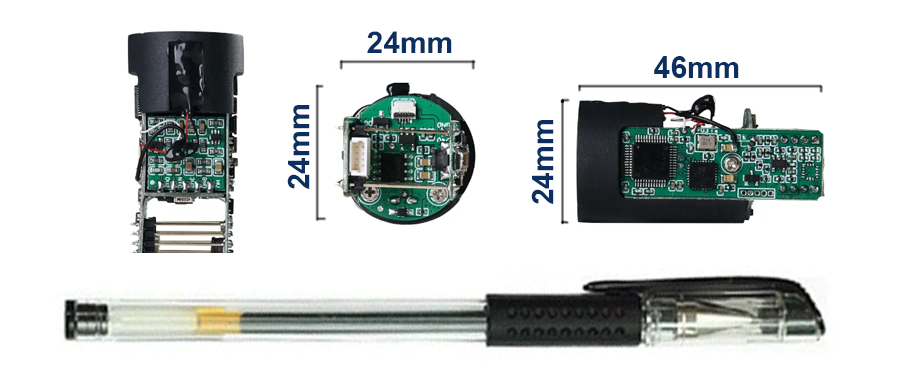

Khoom Dimension
